Horizontal CNC lathe automatic programming thread machine
Almazakl CNC The slant bed lathe features an integrated Y-axis for performance and productivity. The Y and C axes provide greater flexibility and variety of operations when machining complex work pieces. The tilt-bed lathe line is ideal for a variety of industrial applications.

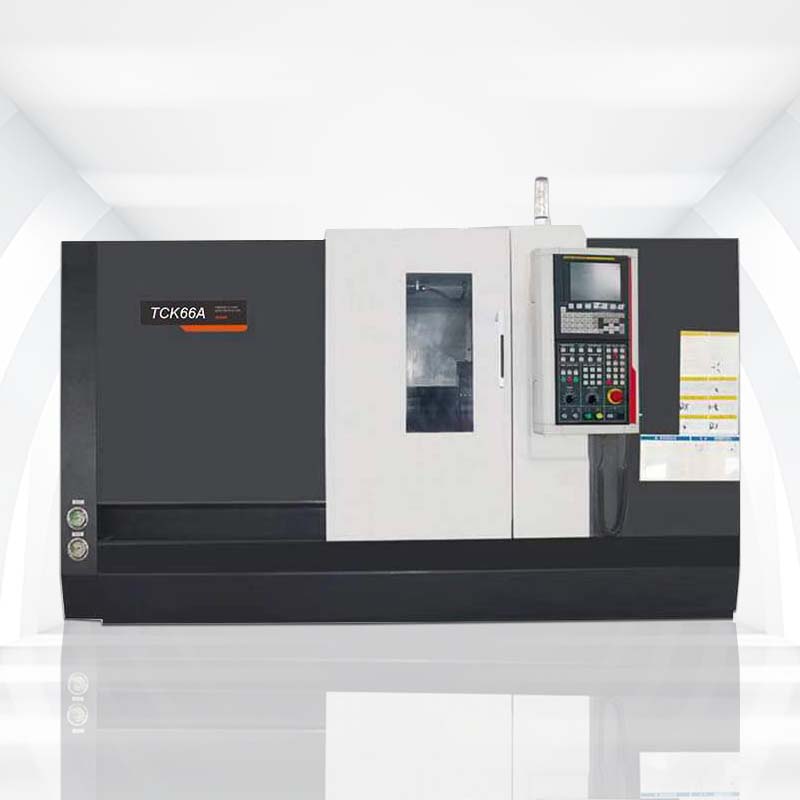

ALTCK66A inclined CNC lathe
The Main Technical Parameters
| Item | Unit | ALTCK66A/800 |
| Maximum turning diameter of bed | mm | φ660 |
| X-direction rail span | mm | 343 |
| Z-direction rail span | mm | 490 |
| Maximum turning diameter of slide | mm | φ400 |
| Maximum turning length | mm | 700 |
| Spindle hole diameter | mm | φ85 |
| Tailstock sleeve stroke | mm | 250 |
| Tools in electric tool post | pcs | 4 |
| Knife square size | mm | □32×32(8 stations) |
| X/Z direction moving speed | m/min | 4/5 |
| X direction stroke | mm | 270 |
| Z direction stroke | mm | 800 |
| Minimum Setting Unit | mm | 0.001 |
| Total Electric Power | KW | 18 |
| Machine Weight | Kg | 4500 |
| Machine Size（L×W×H） | mm | 3500×2000×2100 |
Slant Bed CNC Lathe Product Main Features:
1.ALMAZAKL CNC CNC lathe Higher accuracy Taiwan linear guideways
2.CNC lathe machine Higher speed spindle unit,optional homemade spindle
3.Higher rigidity cast iron
4.Integrated automatic lubrication
5.One-piece casting slant bed CNC lathe
CNC Lathe Advantages:
ALMAZAKL CNC Automatic CNC lathe machine is an economical ,practical type machine tools with good quality , they are suitable for kinds of turning, such as internal and external cylindrical surface turning, cutting of various metric, whit worth, module and diameter pitch threads as well as taper turning, facing, drilling, reaming and broaching for oil grooves and key ways etc. The work piece produced on machine can achieve good accuracy and surface roughness.
CNC Milling Lathe Machine Application
ALMAZAKL CNC The CNC lathe is suitable for processing all kinds of small and medium shafts and plate blanks, and can also turn various threads on the arc of a circle, circular cone, the inner and outer surface of the rotating body.
