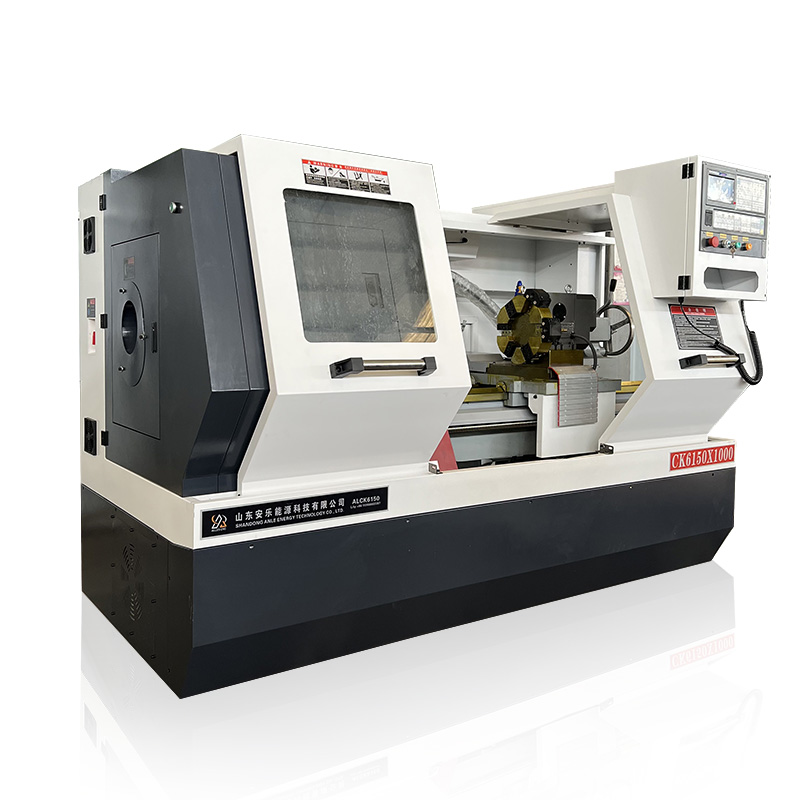

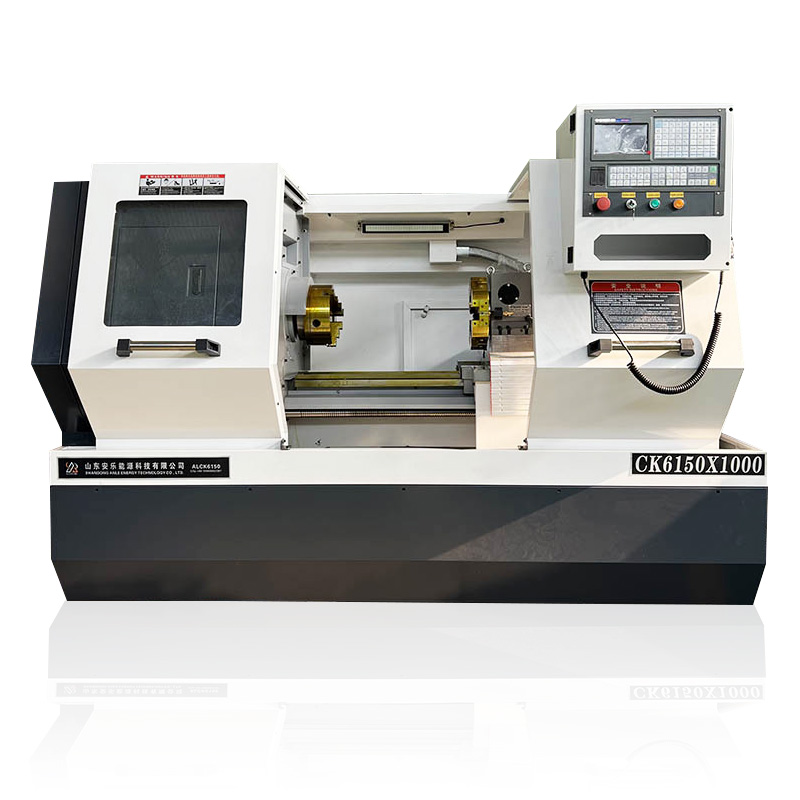

CK6150 Flat Bed CNC Lathe Machine Introduction

The CK6150 Flat Bed CNC Lathe Machine is a reliable and versatile CNC lathe designed for precision turning of medium-sized workpieces. With its flat bed structure and robust construction, the machine ensures excellent rigidity, stability, and accuracy during heavy-duty machining.

Equipped with a maximum swing over bed of 500mm and a processing length up to 1000mm, the CK6150 is capable of handling a wide range of shaft, disc, and sleeve-type components. The user-friendly CNC control system allows operators to perform both simple and complex turning operations with high efficiency.

Features and Advantages of CK6150 Flat Bed CNC Lathe Machine

• Robust Flat Bed Structure – Ensures excellent rigidity and stability during heavy-duty cutting.
• Large Machining Capacity – Maximum swing over bed up to 500mm, machining length up to 1000mm.
• High-Precision Spindle – Provides stable rotation, high torque, and smooth surface finish.
• Reliable CNC Control System – Supports both simple and complex turning operations with ease.
• Precision Ball Screws & Guideways – Guarantee machining accuracy and long service life.
• Flexible Tooling Options – Compatible with various tool holders and configurations.
• High Efficiency – Capable of both single-piece machining and batch production.
• Wide Application Range – Suitable for shafts, discs, sleeves, and other medium-sized components.
• User-Friendly Design – Easy operation, convenient maintenance, and efficient chip removal.
• Cost-Effective Solution – Combines precision, durability, and affordability for general machining needs.

CK6150 Flat Bed CNC Lathe Technical Specifications

Applications of CK6150 Flat Bed CNC Lathe

The CK6150 Flat Bed CNC Lathe is widely used for precision turning of medium-sized components across various industries. Its strong structure, high machining capacity, and reliable CNC control make it suitable for both single-piece production and batch manufacturing.

Main Application Fields

• Automotive Industry – Shafts, gears, bushings, and brake components.
• Machinery Manufacturing – General mechanical parts, flanges, and couplings.
• Energy Equipment – Pump housings, valve components, and pipe fittings.
• Railway & Transportation – Axles, wheel hubs, and connectors.
• Shipbuilding & Marine Industry – Propeller parts, bearings, and shafts.
• Repair & Maintenance Workshops – Replacement parts and customized machining.
• Metalworking Industry – Sleeves, discs, and medium-sized cylindrical parts.
• Agricultural Machinery – Transmission shafts, bearing housings, and drive parts.

The FCK6150 is an ideal choice for manufacturers looking for a cost-effective, stable, and precise CNC turning solution for a wide range of applications.

CK6150 Flat Bed CNC Lathe – Standard and Optional Configurations

Standard Configurations

• High-rigidity flat bed structure
• GSK CNC system

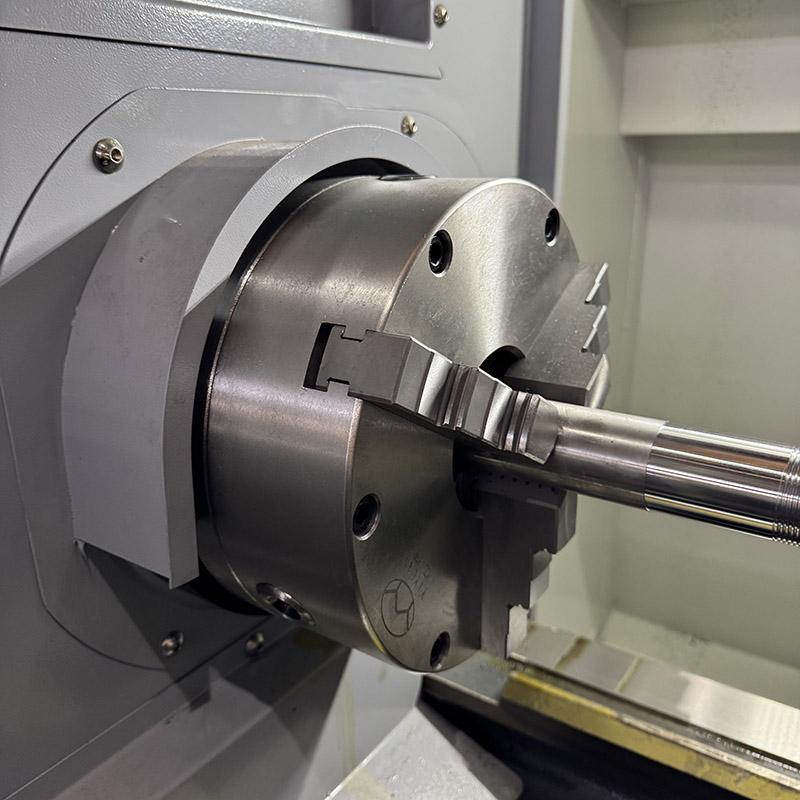

• Manual 3-jaw chuck

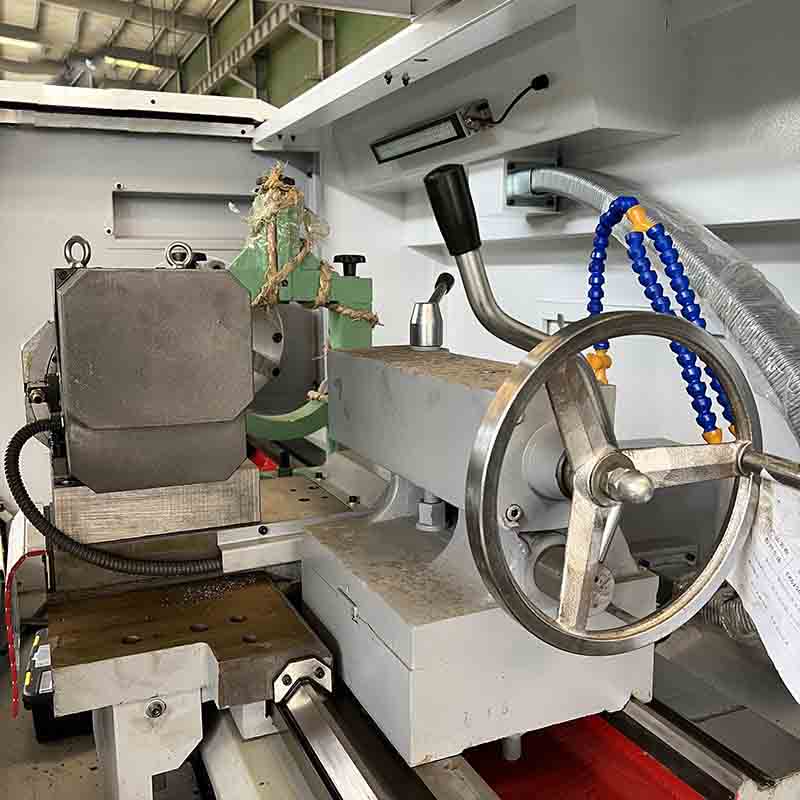

• Tailstock with manual quill
• Cooling system
• Centralized lubrication system
• Work light
• Protective full enclosure

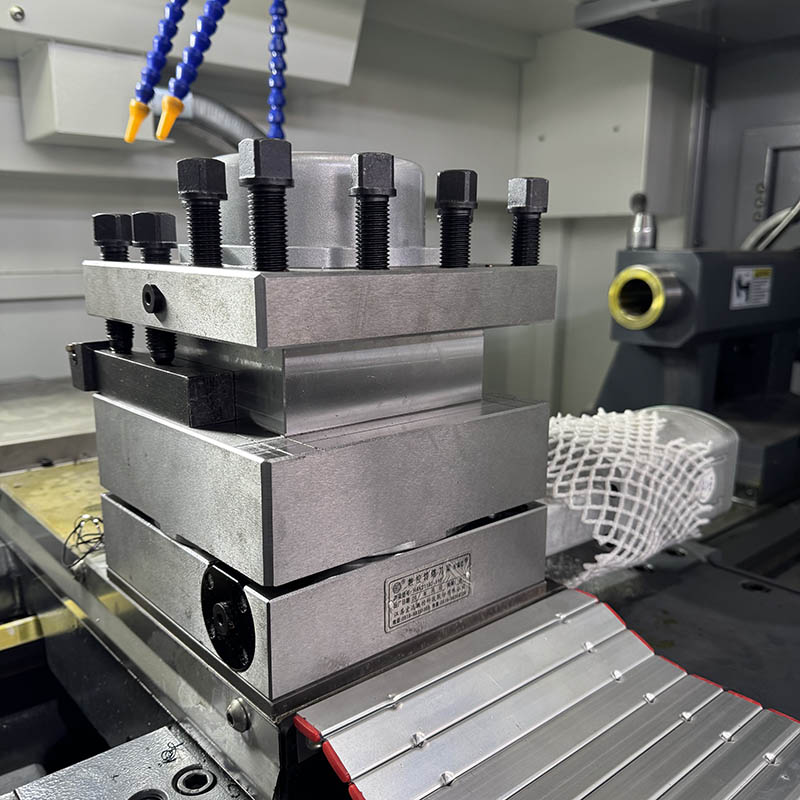

• Standard tool post (manual tool post)

Optional Configurations

• Hydraulic 3-jaw or 4-jaw chuck
• Hydraulic tailstock
• Hydraulic turret or servo turret (6 / 8 stations)
• Automatic chip conveyor
• Automatic tool changer (ATC)
• Pneumatic system
• Spindle oil cooler
• Customized steady rest and follow rest
• Bar feeder
• Precision measuring probes
• Siemens, Fanuc, KND CNC system (customized upon request)

CK6150 CNC Lathe Customer Notice

Dear Customer,

Thank you for choosing the CK6150 CNC Lathe manufactured by our company. To ensure safe and efficient operation of this equipment, please carefully read the following instructions:

1. Installation and Environmental Requirements

The machine should be installed on a solid and level foundation to prevent uneven flooring from affecting machining accuracy.

The operating environment should be clean and dry, avoiding excessive moisture, dust, or strong vibrations.

Recommended ambient temperature: 10℃–40℃, avoiding prolonged exposure to high or low temperatures.

Allow sufficient space around the machine for operation, maintenance, and heat dissipation.

2. Electrical and Operational Safety

The machine must be connected to a proper three-phase power supply (380V/50Hz or customer-specified voltage) with reliable grounding.

Operators must be professionally trained and familiar with CNC system operations and safety regulations.

Before starting the machine, check that the emergency stop switch is functioning properly and that all safety devices are in place.

Never reach into the working area or touch rotating parts while the machine is in operation.

3. Usage and Maintenance

Ensure that the workpiece is securely clamped, the correct tools are selected, and the program is properly set before machining.

Avoid overload cutting during operation to prevent damage to the spindle or tools.

Check the lubrication system daily, and keep guideways and lead screws adequately lubricated.

Regularly clean chips and coolant to maintain machine cleanliness and prevent blockages or corrosion.

Inspect electrical, hydraulic, and transmission components according to the maintenance schedule, and replace wear parts in a timely manner.

4. Warranty and Service

The machine has a 12-month warranty (starting from the date of arrival at the customer's site).

During the warranty period, we provide free repair or replacement for parts damaged due to product quality issues.

Damage caused by non-quality issues (such as misuse, improper operation, or power abnormalities) will incur service charges as appropriate.

Our company provides long-term technical support and spare parts supply to ensure smooth operation of your equipment.

5. Special Notes

Before use, please carefully read the Operation Manual and strictly follow all operating procedures.

It is recommended that customers maintain a machine record to track operation status and maintenance history.

In case of a fault, immediately stop the machine and contact after-sales service personnel. Do not attempt to disassemble or repair the machine yourself.
