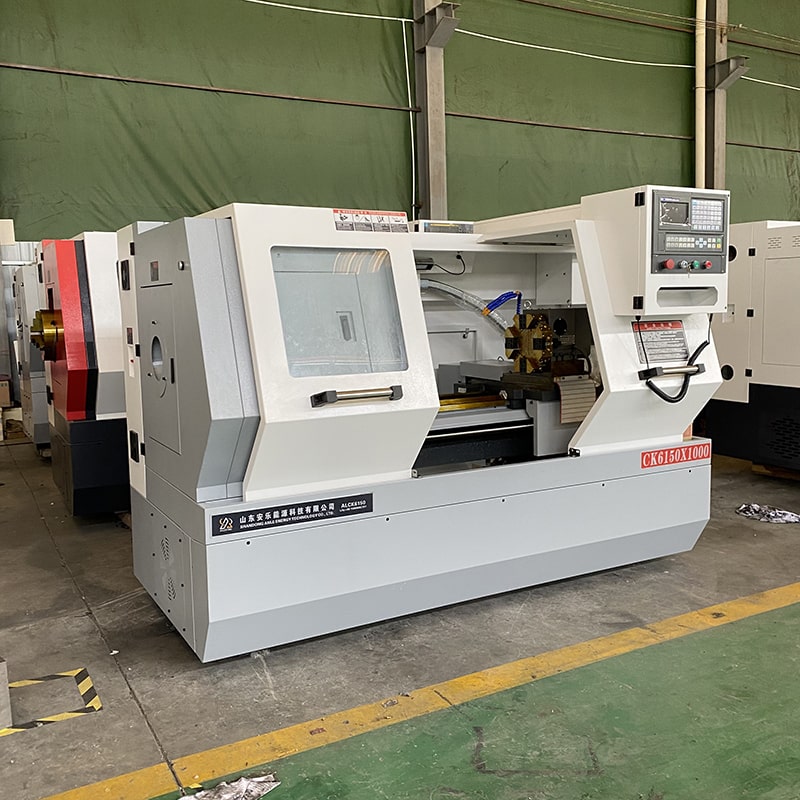

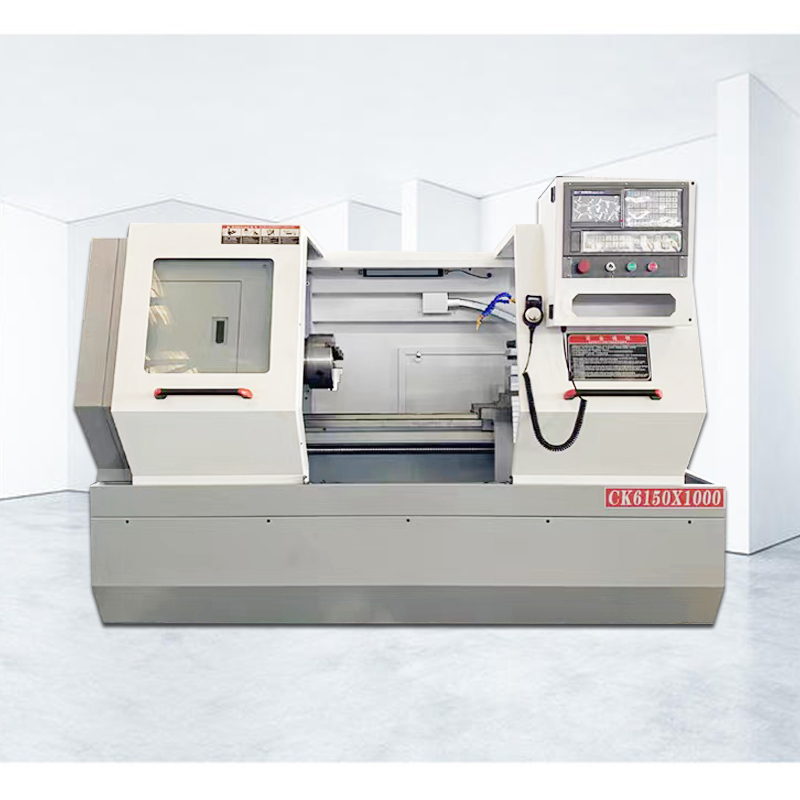

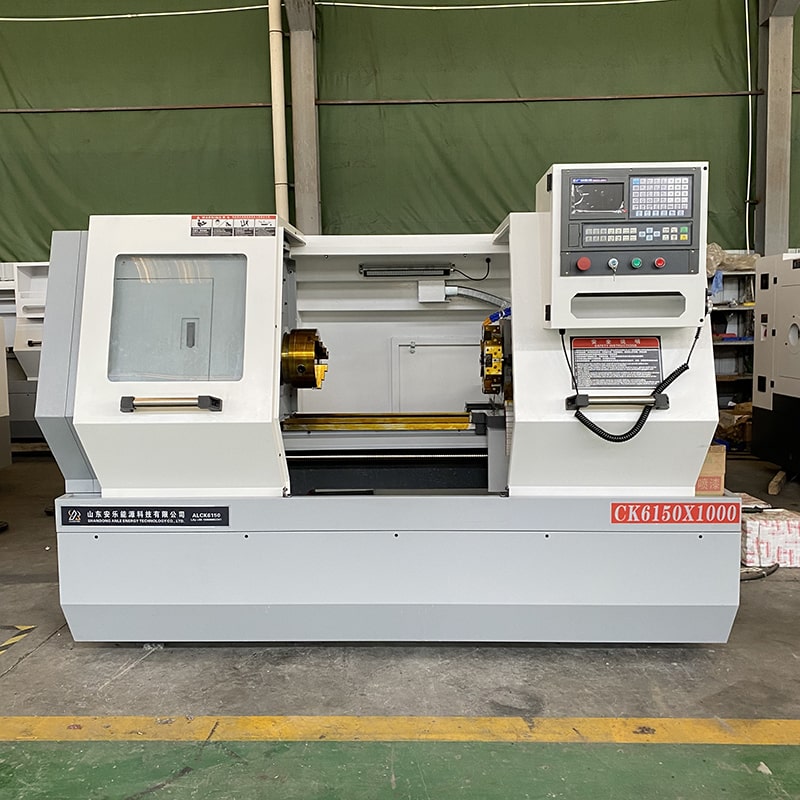

ALCK6150X1000 CNC Lathe Machine – 500 mm Swing, 1000 mm Turning Length

I. Introduction

The ALCK6150X1000 CNC lathe machine is a horizontal flat bed turning center developed for the precision machining of medium and large cylindrical workpieces. With a swing over bed of 500 mm and a maximum turning length of 1000 mm, this model covers a wide range of turning tasks, from short batch parts to longer shaft components. The machine combines a rigid cast iron structure, a 7.5 kW spindle motor, and an 82 mm spindle bore, providing the stability and cutting capability required by modern machine shops.

II. Key Machine Specifications

III. CNC Turning Applications

The ALCK6150X1000 is suitable for precision turning of shafts, discs, sleeves, flanges, bushings, and other rotational metal components. Typical workpieces and industries include:

• Shafts: transmission shafts, motor shafts, drive shafts, and stepped shafts up to 1000 mm in length
• Discs and flanges: flange plates, gear blanks, pulleys, and wheel hubs within the 500 mm swing
• Sleeves and bushings: cylindrical parts machined from bar stock through the 82 mm spindle bore
• General metal components for the automotive, machinery manufacturing, pump and valve, and hardware industries

With stable cutting power from the 7.5 kW spindle motor, the machine performs both rough turning of excess material and fine finishing passes that achieve consistent dimensional accuracy and surface quality.

IV. Why Choose ALCK6150X1000

• 500 mm swing over bed provides sufficient diameter capacity for a wide variety of turning workpieces.
• 1000 mm turning length supports longer shaft parts that shorter lathes cannot accommodate.
• 82 mm spindle bore allows larger diameter bar material to pass through, improving efficiency for bar work.
• 7.5 kW spindle motor delivers reliable power for continuous cutting of steel, cast iron, and other metals.
• Rigid cast iron bed structure absorbs vibration and maintains long-term machining accuracy.
• CNC control simplifies programming and changeover, reducing setup time for batch production.

V. FAQ

Q1: What is the swing over bed of the ALCK6150X1000 CNC lathe?
A: The swing over bed is 500 mm, which defines the maximum workpiece diameter the machine can accommodate.

Q2: What is the maximum turning length of this CNC lathe machine?
A: The maximum turning length is 1000 mm, making the machine suitable for longer shaft components.

Q3: What is the spindle bore diameter?
A: The spindle bore is 82 mm, allowing bar stock of corresponding diameter to pass through the spindle for efficient bar turning.

Q4: How powerful is the spindle motor?
A: The ALCK6150X1000 is driven by a 7.5 kW spindle motor that provides stable cutting power for both roughing and finishing.

Q5: What types of workpieces is this machine suitable for?
A: It is suitable for precision turning of shafts, discs, sleeves, flanges, and other cylindrical metal components.

Q6: Can the machine handle both roughing and finishing operations?
A: Yes. With its 7.5 kW spindle motor and rigid structure, the machine is designed for both heavy rough turning and fine finishing passes.

Q7: How can I get a quotation for the ALCK6150X1000?
A: Please contact our sales team with your workpiece requirements, and we will provide a detailed quotation and delivery schedule.

VI. Product Summary

The ALCK6150X1000 CNC lathe machine combines a 500 mm swing over bed, a 1000 mm turning length, an 82 mm spindle bore, and a 7.5 kW spindle motor in a rigid flat bed design. It is a dependable solution for precision turning of shafts, discs, sleeves, and cylindrical metal components, serving machine shops that require stable accuracy, practical capacity, and efficient batch production.
